Coordination Compounds Class 12 Chemistry Notes

Introduction to Coordination Chemistry or Coordination Compounds

Transition metal possesses characteristic property of undergoing complex formation. Due to this remarkable tendency, they form a large number of coordination compound. The tendency to form coordination compound of several non – transition metals much less.

• Coordination compounds are the compounds in which the central metal atom is linked to a number of ions or neutral molecules by coordinate bond.
• Coordinate bond is a covalent type of bond in which both the shared pair of electrons are contributed by one atom.

            Coordinate compounds are widely distributed in minerals, plants and animals and are known to play many important biological functions.

Coordination Compounds Examples: For example, chlorophyll is coordination compound of magnesium, and it is essential in photosynthesis. Red pigment haemoglobin is a coordination compound iron.

The branch of chemistry which deals with the study of coordination compounds or complex compound is known as coordination chemistry.

COORDINATION COMPOUNDS for Class 12

WERNER’S THEORY OF COORDINATION COMPOUND

Basic postulates of Werner’s theory

1. Most of the metallic elements exhibit two types of valence.
   • Primary valence or principal valence.
   • Secondary valence.
2. Every metal tends to satisfy both of its primary and secondary valences.
3. Every metal has a fixed number of secondary valences.
4. The secondary valence is always directed towards fixed position in space.

Werner’s theory in the light of modern electronic theory of valence.

• According to Werner, two spheres of attraction are present around the metal. The inner zone is coordination sphere, and the outer zone is ionization sphere.
• In terms of modern electronic theory of valence, the coordination sphere is equivalent to the coordination number of the metal ion and the ionization sphere is equivalent to the ionisable or the oxidation state of the metal ion.
• Werner introduced a square bracket [ ] to enclose the central metal ion and the ligands. This represents coordination sphere. The ions of the ionization sphere are placed outside the square bracket. e.g. [CO(NH3)6]Cl3, in this complex the coordination sphere includes six ammonia molecules while ionization sphere includes three chloride ions.

Application of Werner’s theory to CO (III) amines in Coordination Compounds Class 12

CO (III) amines are the complex of CO (III) with ammonia. They have compositions.

1. [CO(NH3)5]Cl2

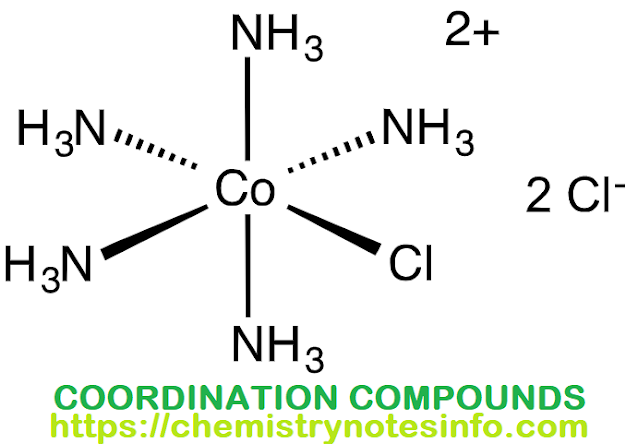

2. [CO(NH3)5Cl]Cl2
3. [CO(NH3)4Cl2]Cl
4. [CO(NH3)3Cl3]

Experimental observation to CO (III) amines

1. The primary valence (or oxidation state) of cobalt is 3 while secondary valence (or coordination number) is 6.
2. When cobalt amines are heated with hydrochloric acid at 373 K ammonia is not removed (evolved). In all these compounds ammonia molecules are seen to be firmly bound.
3. All these compounds are found to differ in their electrical properties.
4. All these compounds are differing in their reactivity towards silver nitrate.

LIGANDS

The molecules or ions which are coordinated to the central atom or ion in the coordination compound are called ligands.

e.g.  i.   In  [ Ni(NH3)6]2+ , central metal ion is Ni2+ and ligands are NH3 molecules.

        ii.  In [Cr(H2O)6]3+ , the central metal ion is Cr3+ and ligands are H2O molecules.

Types of Ligands

Types of ligands and classification of ligands is as follows.

1. Mono or unidentate ligands

            The ligand molecules or ion which has only one donor atom or one point attachment and can coordinate with the metal ion at only one site in a complex is called unidentate or monodentate ligands.

e.g. Cl– , OH– , NH3 , H2O etc.

2. Poly multidentate ligands

            The ligand molecule or ion in which has two or more donor atom or points of attachment and can be linked to the same metal in a complex using two or more donating sites is called poly or multidentate ligands.

            Depending upon the number of donor atoms, they are further classified as

• Bidentate ligands

e.g. ethylene diammine

• Tridentate ligands

e.g. diethylene triammine

• Tetrodentate ligands

e.g. triethylenetetrammine

• Hexadentate ligands

e.g. ethylenediamminetetracetate (EDTA)

3. Ambidentate ligands

            Ambidentate ligands are the ligands which have two or more donor atoms capable of forming coordinate bonds; however only one donor atom is utilized during complex formation.

e.g. NO2 group has donor atoms N and O out of the two only one donor atom is linked to the two only one donor atom is linked to the metal as M-ONO or M- NO2.

COORDINATION NUMBER (CN)

The number of ligands which are directly bonded to central metal atom or ion in a complex (coordination compound), is known as coordination metal of the metal atom or ion. It is abbreviated by symbol ‘CN’.

            In case of metal chalets (complex with polydentate ligands and ring structures). CN is the number of pair electron involved in formation of bonds between metal and ligands. CN is characteristic property of metal. Geometry and shape of coordination compound is governed by CN.

Metal ion and coordination number

Metal ion	Oxidation state	CN	Examples
Ag+	+1	2	[Ag (NH3)2]+
Cu2+, Ni2+, Zn2+, Cd2+, Hg2+, Pt2+	+2	4	[Cu(NH3)4]2+
Fe3+, CO3+, Cr3+	+3	6	[CO(NH3)6]3+
Sn4+, Pt4+	+4	6	[Pt(NH3)6]4+
MO4+	+4	8	[MO(CN)8]4-

The coordination number of the metal ion is influenced by –

1. Charge on the metal ion.

2. Charge on the ligand.

3. The relative sizes of metal ion and ligands.

4. The forces of repulsion between the ligands etc.

Complex ion :  A complex ion is more or less stable, charged aggregate formed. When an ion, mostly of a metal is directly linked to a group of neutral molecules or ions.

Coordination entity : A coordination entity constitutes central metal atom or ion bonded to fixed number of ions or molecules.

Coordination sphere : The central metal atom or ion and the coordinating group (ligands) attached to it are written inside the square bracket and is together called as coordination sphere.

Homoleptic and heteroptic complexs

A] Complexes in which a metal is attached to one kind of donor groups are homoleptic.

B] Complexes in which a metal is bound to more than one kind of donor groups are heteroleptic.

Cationic, Anionic and Neutral complexes

A] Cationic complex

A complex in which the complex ion carries a net positive charge is called cationic complex.

e.g. [CO(NH3)6]Cl3

B] Anionic complex

The complexes in which the complex ion carries a net negative charge are called anionic complexes.

e.g. K2[HgI4]

C] Neutral complex

A complex carrying no net charge is called a neutral complex.

e.g. [Ni(CO)4]

Charge number of complex ion

            The net charge carried by complex ion is called charge number. It is algebraic sum of the charges carried by the central metal ion and ligands attached to it.

e.g. charge number of [Fe(CN)6]4-

       = charge on Fe2+ + 6 x charge on CN– ion

       = (+2) + 6(-1) = -4

Coordination polyhedron

            The spital arrangement of the ligand atoms, which are directly attached to the central atom / ion is called coordination polyhedron. The common coordination polyhedral are tetrahedral, square planner and octahedral.

Double salt and coordination compounds

Double salt : Double salts are molecular or addition compounds which exist in the solid state but dissociate into their constituent's ion when dissolved in water.

We can also say that, a double salt is a salt that contains the two or more different anions or cations. Example of double salt is Potassium sodium tartrate.

Coordination Compounds : Coordination compounds are molecular or addition compounds which retain their identity in aqueous solution and show properties entirely different from those of their constituent ions.

Characteristics of complex ions

• Generally a transition metal ion is the central metal ion in a complex.
• An ion loses its individual properties and acquires the properties of the complex ion, which it forms.
• The complex ion can dissociate to a slight extent in the solution however it retains its identity.
• The algebraic sum of the charges of constituent ion is the net charge of complex ion.
• The stability of chelate complex is higher than those complexes which are similar but non – chelated.

Effective Atomic Number (EAN)

            Effective atomic number is the total number of electrons around the central metal ion present in a complex. It is the sum of the electrons of metal ion and the electron donated by the ligands.

EAN = Z-X+Y

Where, Z = Atomic number of the metal.

               X = Number of electrons lost during oxidation of metal to metal ion.

               Y = Number of electrons donated by the ligands.

e.g. In ferrocyanide ion  [Fe(CN)6]4-

        Z = Atomic Number of Fe = 26

        X = Number of electrons lost due to oxidation of Fe2+ = 2

        Y = Number of electrons donated by

              6CN–  = 6 x 2 = 12

.: EAN = 26 – 2 + 12 = 36

.: EAN of [ Fe (CN)6]4-  is 36.

EAN of few metal ions

metal	Complex	Z	X	Y	EAN
Ni	Ni(CO)	28	0	8	36
Fe	[Fe(CN)6]4-	26	2	12	36
CO	[CO(NH3)6]3+	27	3	12	36
Zn	[Zn(NH3)4]2+	30	2	8	36
Pt	[Pt(NH3)6]4+	78	4	12	86

ISOMERISM IN COORDINATION COMPOUND

            Isomerism is the phenomenon in coordination compounds having same molecular formula but different arrangement of the ligands around the central metal atom or ion in the space.

A] Stereoisomerism

            Stereoisomerism are those isomers which have the some position of atoms or groups but they differ in the spatial arrangement around the central atom.

Types of Stereoisomerism

I] Geometrical isomerism

II] Optical Isomerism

I] Geometrical isomerism

• Geometrical isomerism is due to difference in the spatial arrangement of atoms or groups of atoms around the central metal atom or ion.
• This occurs in heteroleptic complexes.

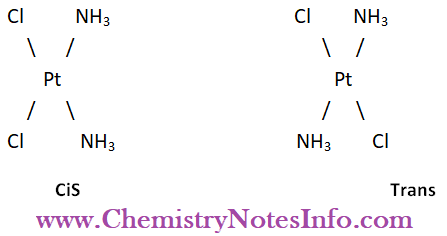

• When two similar groups (ligands) occupy adjacent positions, the isomer is called CiS and when two similar groups are arranged opposite to one another, the isomer is called trans.

e.g. [Pt(NH3)2Cl2]

• It is present in square planner complexes with coordination number 4 and octahedral complexes with coordination number 6.

1] Square Planner Complexes : [Ma2b2]n±, [Ma2bc]n±, [Mabcd]n±, [M(AB)2]n±.

2] Octahedral complexes : [Ma4b2]n±, [Ma3b3]n±, [M(AA)2a2]n±]

• Tetrahedral complexes with coordination number 4 do not show this isomerism as all the four position are equivalent.

II] Optical Isomerism

• Optical isomerism in coordination compounds arises out of chirality of coordination entity.
• Chiral compounds do not have any element of symmetry and are optically active.
• Optical isomerism are non-super imposable mirror images of each other and are called enantiomers.
• Optical isomers rotate the plane of plane polarized light. The isomers which rotates the plane of plane polarized light in the clockwise direction is known as d – form.
• The isomers which rotate the plane of plane polarized light in the anti – clockwise direction is known as l – form.
• Optical isomerism is not so common in tetrahedral and square planer complexes. However octahedral complexes bidentate ligands show optical isomerism. Some examples of such type of octahedral complexes are as follows:

[M(AA3)]n±, [M(AA)2a2]n±, [M(AA)2ab]n±

B] Structural Isomerism

There are four type of structural isomerism

I] Ionization isomerism

            The compound which have same molecular formula but give different ions in solution are called ionization isomers and the phenomenon is called ionization isomerism.

e.g. [CO(NH3)5SO4]Br    (Red violet)

        [CO(NH3)5Br]SO4    (Red)

II] Linkage Isomerism

            The compounds which have the same formula but differ in the linkage of a ligand to the metal atom or ion are called linkage isomers and this phenomenon is called linkage isomerism.

e.g. [ CO(NH3)5(NO2)]Cl2    (Yellow)

        [ CO(NH3)5(ONO)]Cl2   (Red)

III] Coordination Isomerism

            The compounds which have same molecular formula but different complex ions involving interchange of ligands between cationic and anionic entities of different metal ions are called coordination isomers and the phenomenon is called coordination isomerism.

e.g. [CO(NH3)6][Cr(CN)6]  and  [Cr(NH3)6][CO(CN)6]

IV] Hydrate Isomerism

            Compounds which have the same composition but differ in the number of water molecules present as ligands and as free water molecule in the crystal lattice are called hydrate isomers.

e.g. [Cr(H2O)6]Cl3  (Violet)

        [Cr(H2O)5Cl]Cl2.H2O   (Blue Green)

        [Cr(H2O)4Cl2]Cl.2H2O    (Green)

VALENCE BOND THEORY (VBT)

            This theory accounts for coordinate bond formation due to the overlap of vacant hybrid orbital’s of the central metal atom/ion with the filled orbital of the ligands each containing lone pair of electrons.

Salient features of VBT

1. A central metal ion present in a complex provides a definite number of vacant orbital’s S, P, and d for the formation of coordination bonds with the ligands.
2. The number of vacant orbital’s provided by the central ion is the same as its coordination number.
3. These vacant orbital’s undergo hybridization to form same number of hybrid orbital’s.
4. Each ligands has at least one orbital containing a lone pair of electron.
5. The geometrical shape of the complex ion depends upon the hybridization of the metal orbital’s.
6. The vacant hybrid orbital of the metal ion overlaps with filled orbital’s of the ligands to form coordinate bond between metal and ligand.
7. The coordination bond is stronger if the overlapping between the orbital is greater.
8. If central metal atom contains then it exhibits paramagnetic property and if central metal atom contains no unpaired electron then, it exhibits diamagnetic property.

Structure of complex compounds based on valence bond theory

1. [Ni(CO)4]
2. [Ni(Cl)4]2-
3. [Ni(CN4)]2-
4. [CO(NH3)6]3+
5. [COF6]3-

Limitation of valence bond theory

1. It cannot explain the spectral properties (colors) of complex compounds.
2. It cannot explain why some complexes are inner complexes for the some are outer complexes for the same metal ion in the same oxidation state.
3. It does not provided quantitative interpretations of thermodynamic or kinetic stabilities of coordination compounds.
4. There is no distinction between weak field and strong field ligands.
5. It cannot predict if a 4 coordination complex will have tetrahedral or square planar geometry.
6. It does not explain the order of reactivity of inner orbital inert complexes of d3, d4, d5 and d6 ions.
7. It does not explain magnetic moments.

Crystal Field Theory (CFT)

            This theory assumes that the interaction between the metal ion and ligand is purely electrostatic. When ligands approach central metal atom or ion the five degenerate d – orbital’s of the central metal atom split up into level of different energy under influence of electrostatic field of ligands.

Salient features of crystal field theory (CFT)

1. In a complex the central metal atom or ion is surrounded by various atom or group of atoms called ligands.
2. The ligands are either negatively charged ion (Fˉ, Clˉ, CNˉ etc.) or neutral molecules possessing lone pair of electrons (H2O, NH3, etc). In the neutral ligands the most electronegative atom points towards central metal ion.
3. Ligands and metal ions act as point charges. Electrostatic interaction is present between electrons of metal and ligand.
4. When the ligand approach the metal atom, the electron of the central atom and those of ligands repel each other. These repulsive forces destroy the degeneracy of d – orbital’s and split them into two groups called t2g and eg group.
5. Electrons first occupy lower energy t2g level. Electron occupancy is in accordance with Hund’s rule.
6. Crystal field theory does not account for covalent character as orbital overlap is not considered.
7. Crystal field stabilization energy (CFSE) determines the stability of complex nature. Number of ligands and geometry of the complex determines the magnitude of CFSE.

Weak field ligand and strong field ligand

            The ligands with small value of crystal field stability energy (CFST) are called weak field ligands.

            The ligands with large value of crystal field stability energy (CFST) are called strong field ligands.

Spectrochemical series

• The arrangement of ligands in order of their increasing field strengths, i.e. increasing crystal field splitting energy (CFSE) values is called spectrochemical series.
• Spectroscopy is used to determine the values of pairing energy (P) and Δᵒ.
• The spectrochemical series is shown below

Iˉ ˂ Brˉ ˂ SCNˉ ˂ Clˉ ˂ S2ˉ ˂ Fˉ ˂ OHˉ ˂ C2O42ˉ ˂ H2O ˂ NCSˉ ˂ EDTA ˂ NH3 ˂en ˂ CNˉ ˂ CO.

Limitation of crystal field theory (CFT)

1. It explain only about the central metal ion with d orbital’s but does explain about orbital’s like s and p.
2. The theory does not explains about ∏ bonding in complexes.
3. In the spectrochemical series water is a stronger ligand than OHˉ which is not explain satisfactorily.
4. According to this theory metal ligand bond is ionic, but cannot explain partly covalent nature of the metal – ligand bond.

COLOURS IN COORDINATION COMPOUNDS

• The crystal field theory explains the origin of colour of coordination compounds. Colour is due to d-d transition.
• When complex compound absorb light of particular wavelength, an electron is excited from lower t2g level to higher eg level. Due to this the coordination compound has a complementary colour.
• An octahedral complex [Ti(H2O)6]3+ with d1 configuration with one electron in lower t2g level. Complex absorbs light in the blue green region. The electron is excited from lower t2g level to higher eg level.

• The colour observed is purple colour.
• [Cu(H2O)6]+2 absorbs red light and the observed colour is blue. This is due to transition of one unpaired electron of d9 configuration.

Relation between complex entity and wavelength

Coordination entity	Wavelength of light absorb	Colour of light absorb	Colour of coordination entity
[Ti(H2O)6]3+	498	Blue green	Purple
[CO(CN)6]3-	310	Ultraviolet	Pale yellow
[COCl(NH3)5]2+	535	Yellow	Violet
[CO(NH3)5(H2O)]3+	500	Blue green	Red/purple
[CO(NH3)6]3+	475	Blue	Yellow orange
[Cu(H2O)4]2+	600	Red	blue

BONDING IN METAL CARBONYL

            Metal carbonyls are the organometallic compounds in which carbon monoxide (CO) act as the ligand.

1. There is donation of lone pair of electrons of carbon (of Co) into the suitable empty orbital of the metal atom. This is a dative overlap and forms a sigma M←C bond.
2. There is ∏ – overlap involving donation of electrons from filled metal d – orbital’s into vacant antibonding ∏* molecular orbital’s of CO. this result into the formation of M→C∏ bond.

STABILITY OF COORDINATION COMPOUNDS

• The stability of coordination compounds depend on the metal ion and ligands. For thermodynamically stable compounds, this interaction is strong.
• The thermodynamic stability is quantitatively expressed in terms of the stability constant which is an equilibrium constant. For the equilibrium between metal ion and ligand.

Ma+ nLx- ↔ [MLn]b+

Where, Ma+ , Lx- and [MLn]b+ are the metal ion, the ligand and complex respectively and a+, x- and b+ are charges.

• The equilibrium constant for stability constant is expressed as

K = [MLn]b+ / [ Ma+][Lx-]n

• High value of stability constant indicates greater thermodynamic stability.

Stability constant for formation of few complex

System	Stability Constant K
Ag+ + 2NH3 ↔ [Ag(NH3)2]+	1.6 X 107
Ag+ + 2CN ↔ [Ag(CN)2]–	5.5 X 1018
Cu2+ + 4NH3 ↔ [Cu(NH3)4]2+	4.5 X 1011
Cu2+ + 4CN– ↔ [Cu(CN)4]2-	2.0 X 1027

This coordination compounds class 12 chemistry notes are very important for board exam and questions are asked from this chapter. So, also learn given below terms related to this chapter.

What is Lewis Acid

A Lewis acid in coordination chemistry is a chemical species or molecule that can accept a pair of electrons to form a coordinate covalent bond. So, we can say that Lewis acids are electron pair acceptors.

Common examples of Lewis acids include:

1. Metal cations: Many metal ions can act as Lewis acids by accepting electron pairs. For example, Al3+ and Fe3+ ions can form coordination complexes by accepting pairs of electrons from Lewis bases.

2. Electron-deficient molecules: Compounds like boron trifluoride (BF3) and boron trichloride (BCl3) readily accept electron pairs, making them Lewis acids.

3. Carbocations: Positively charged carbon ions formed during organic chemical reactions can also act as Lewis acids.

4. Protons (H+): In some cases, hydrogen ions (protons) can act as Lewis acids by accepting electrons to form a covalent bond.

What is Lewis Base

A Lewis base in coordination chemistry is a chemical species or molecule that can donate a pair of electrons to form a coordinate covalent bond with a Lewis acid. So, we can say that Lewis bases are electron pair donors.

Common examples of Lewis bases include:

1. Ammonia (NH3): Ammonia is a classic example of a Lewis base. It has a lone pair of electrons on the nitrogen atom, which it can donate to form a coordinate covalent bond with a Lewis acid.

2. Water (H2O): Water molecules also have two lone pairs of electrons on the oxygen atom, making them capable of acting as Lewis bases.

3. Hydroxide ion (OH⁻): The hydroxide ion, which is a common base in aqueous solutions, has a lone pair of electrons on the oxygen atom.

4. Alkoxide ions: Alkoxides, such as ethoxide (CH3CH2O⁻), have lone pairs on the oxygen atom and can act as Lewis bases.

5. Amines: Organic compounds containing nitrogen atoms with lone pairs, like primary, secondary, and tertiary amines, can function as Lewis bases.

6. Phosphines: Compounds containing phosphorus with lone pairs of electrons can also act as Lewis bases.

Electron Pairing in Coordination Chemistry

Electron pairing in coordination chemistry is very important phenomena. Electron pairing is the formation of coordinate covalent bonds between a Lewis base and a Lewis acid to create a coordination complex.

Coordination complexes are molecules or ions in which a central metal atom or ion is bonded to one or more surrounding molecules or ions, known as ligands. The bonding between the metal and the ligands is typically achieved through the sharing of electrons, and this involves the electron pairing.

What is Oxidation Number

An oxidation number is also known as oxidation state. It is used to show the charge of an atom within a compound or molecule. Oxidation number or oxidation state is the number assigned to an atom to indicate the number of electrons it has gained or lost when it forms a chemical bond with other atoms.

APPLICATION OF COORDINATION COMPOUNDS

        There are many applications of coordination compounds in different areas. Coordination compounds are used in –

1. Extraction of metal.
2. Analytical chemistry.
3. Medicine.
4. Electroplating.
5. Estimation of hardness of water.
6. Modifying the redox behaviour of metal ions.
7. Biological system.

Join us on our social media pages- Facebook Page, Facebook Group, Twitter, Pinterest.
